Ctec Mirror Range smart light switches
Compare Mirror Range options: a 5-in-1 multi-function switch, single-gang dimmer, or 3-speed AC fan and light switch. Features and smart-home compatibility vary by model—check the specifications before you choose.
Hardwired switches must be installed by a licensed electrician. Homeowners can find online retailers below and arrange installation.
FOR BUILDERS & ELECTRICIANS
Ctec supplies wired smart switches for new builds, renovations and project work. Talk to our team about project supply, model selection and compatibility.

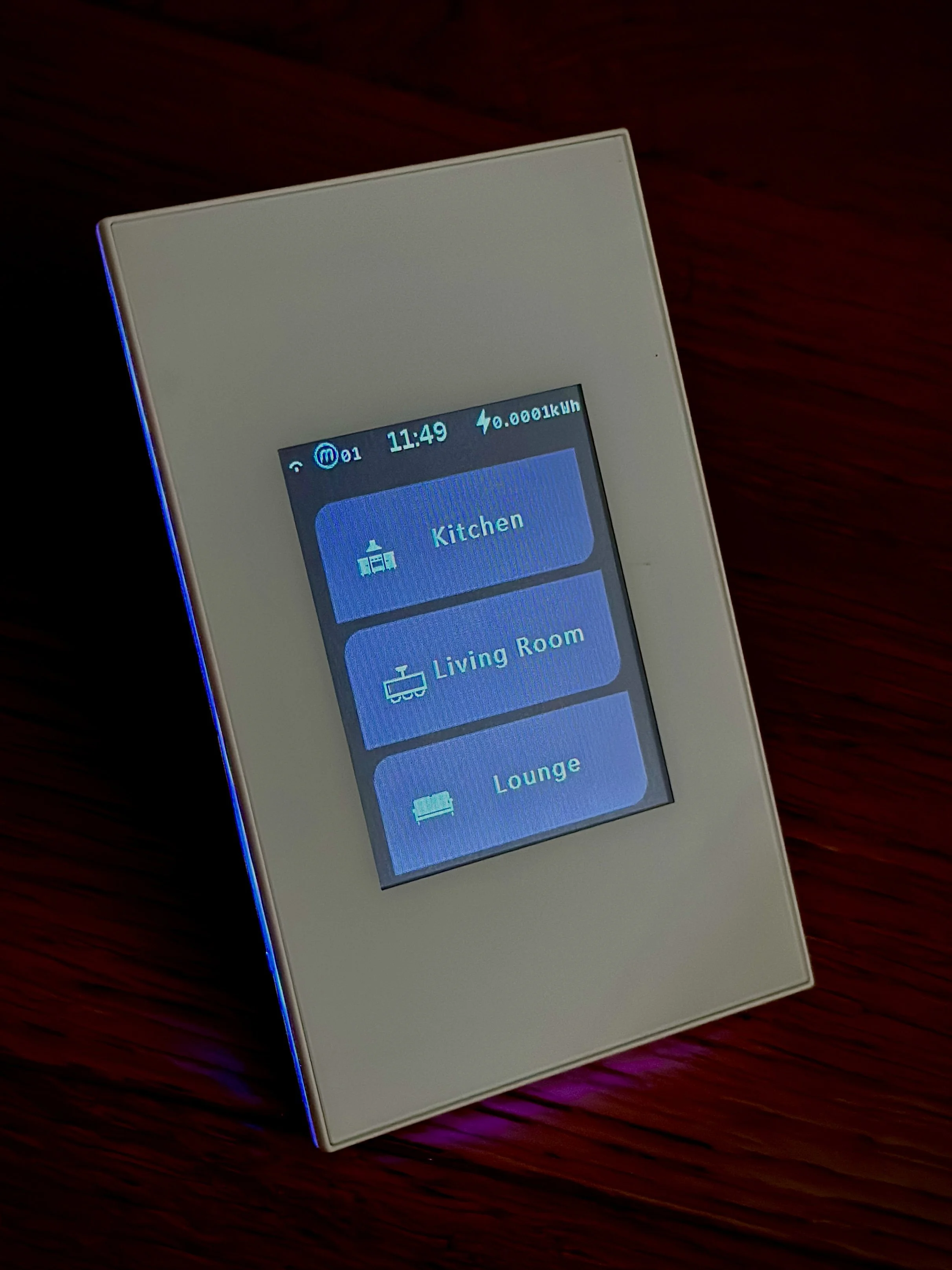

5-in-1 Multi-Function Switch
SKU BY PLATFORM & COLOUR
GOOGLE ASSISTANT, ALEXA & HOME ASSISTANT
White — SKU: L8-HSU-G-W
Black — SKU: L8-HSU-G-B
APPLE HOMEKIT
White — SKU: L8-HSU-H-W
Black — SKU: L8-HSU-H-B
CONTROL MODES
• Configure 1-, 2- or 3-gang lighting, curtain/shutter control or scenes.
• Scenes are unavailable on HomeKit models. Curtain/shutter mode operates coverings only, not lights.
DISPLAY & PERSONALISATION
• Customise button names, icons and screen background. Choose vertical or horizontal layout.
• The display can show time, Wi-Fi status and power use.
• Set weekly schedules, countdowns or automatic-off timers.

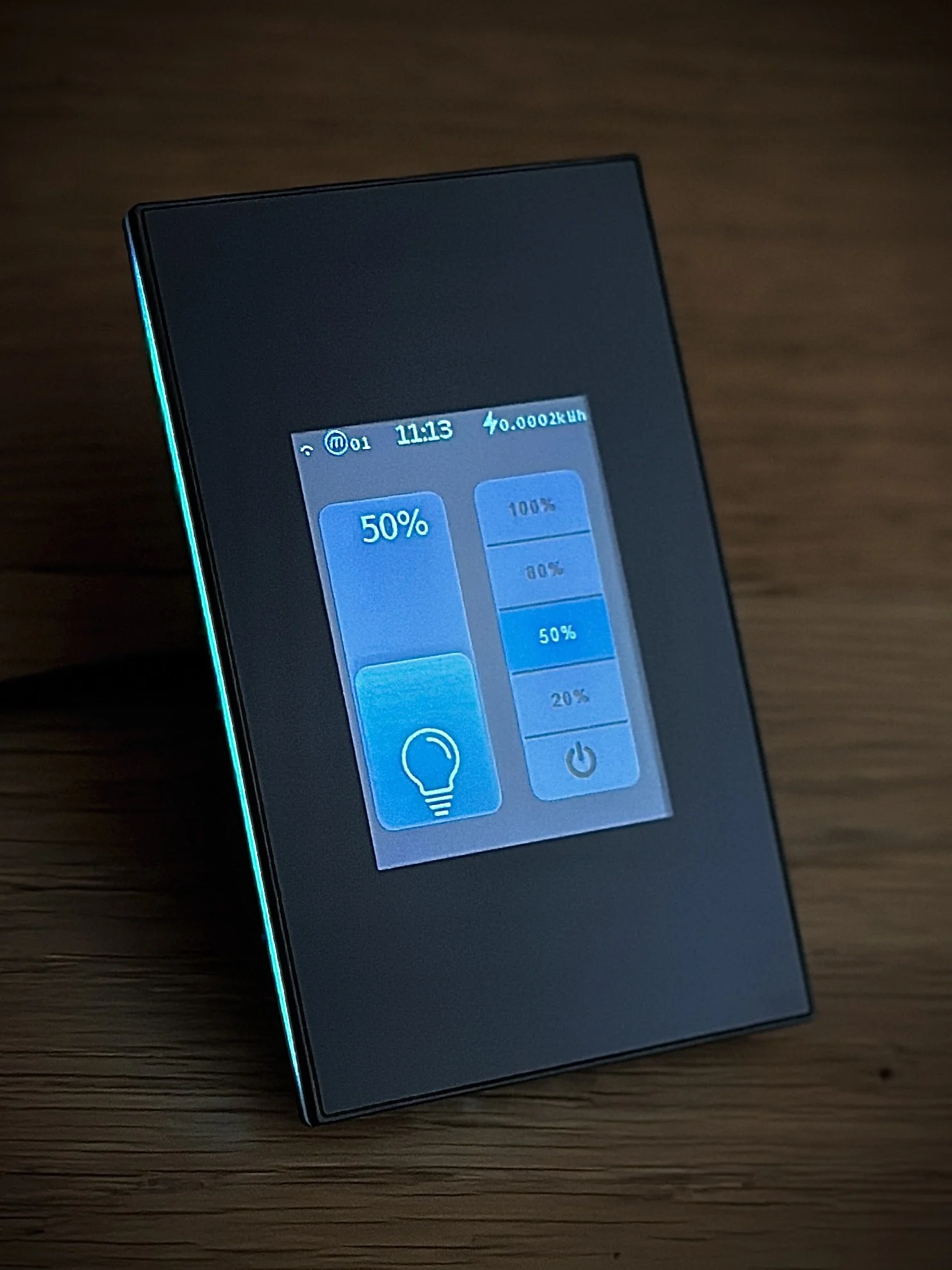

Single-Gang Dimmer
SKU BY PLATFORM & COLOUR
GOOGLE ASSISTANT, ALEXA & HOME ASSISTANT
White — SKU: L8-HDU-G-W
Black — SKU: L8-HDU-G-B
APPLE HOMEKIT
White — SKU: L8-HDU-H-W
Black — SKU: L8-HDU-H-B
Trailing-edge dimming for compatible LED lamps and drivers. Ask your electrician to confirm the specific load and driver combination. Customise button names, icons and background, and use weekly schedules, countdown or automatic-off timers.
DISPLAY & APP
• The screen can show time, Wi-Fi status and power use; choose vertical or horizontal layout.
• Adjust standby display brightness and set the background light to switch off permanently or at selected times.

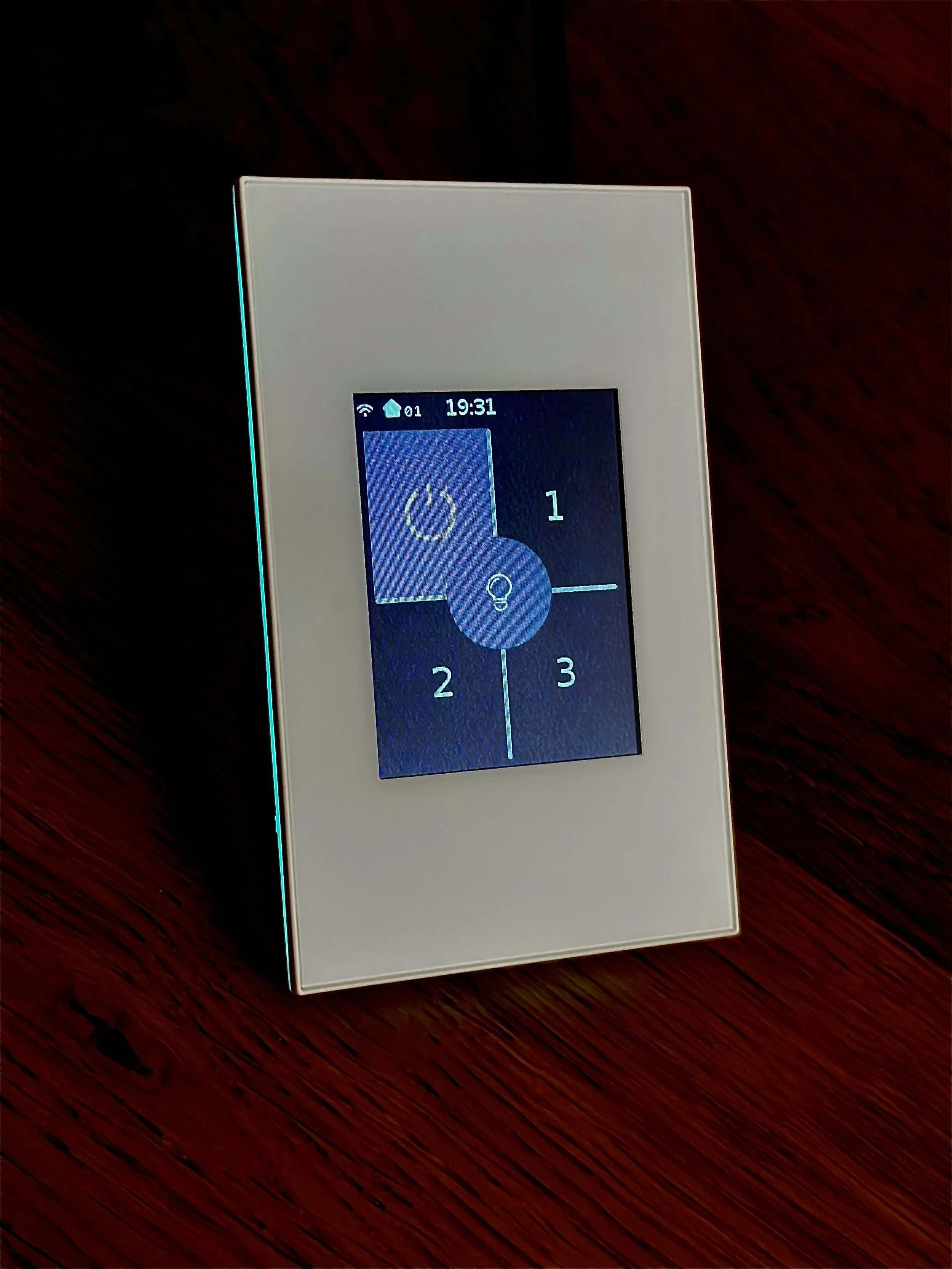

3-Speed AC Fan & Light Switch
SKU BY PLATFORM & COLOUR
GOOGLE ASSISTANT & ALEXA
White — SKU: L8-HFU-G-W
Black — SKU: L8-HFU-G-B
APPLE HOMEKIT
White — SKU: L8-HFU-H-W
Black — SKU: L8-HFU-H-B
Three-speed control for compatible AC fans, with light control on selected models. Not suitable for DC fans. Confirm fan and optional light compatibility before ordering. Fan switch samples are available for compatibility testing only. Customise the touchscreen and set schedules or timers in the app.
DISPLAY & APP
• Choose vertical or horizontal screen layout; the display can show time, Wi-Fi status and power use.
• Adjust standby brightness and schedule the background light to turn off when not needed.

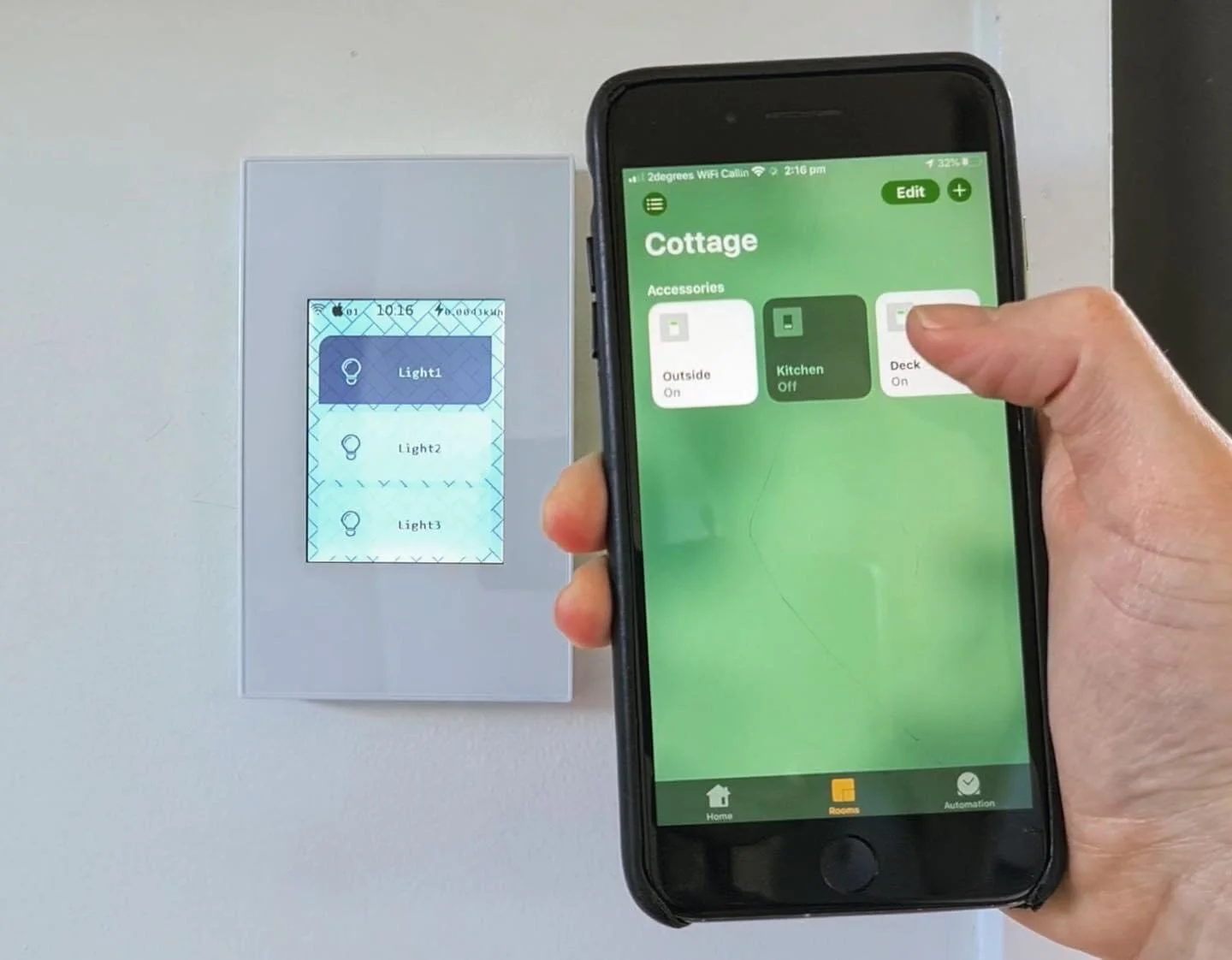

HomeKit
Available on selected SKUs; see list above.
For wireless 2-way, pair a load switch with a dummy switch. Four Apple Home automations keep both switches’ on/off states in sync—no traveller wire between locations. See setup guide.

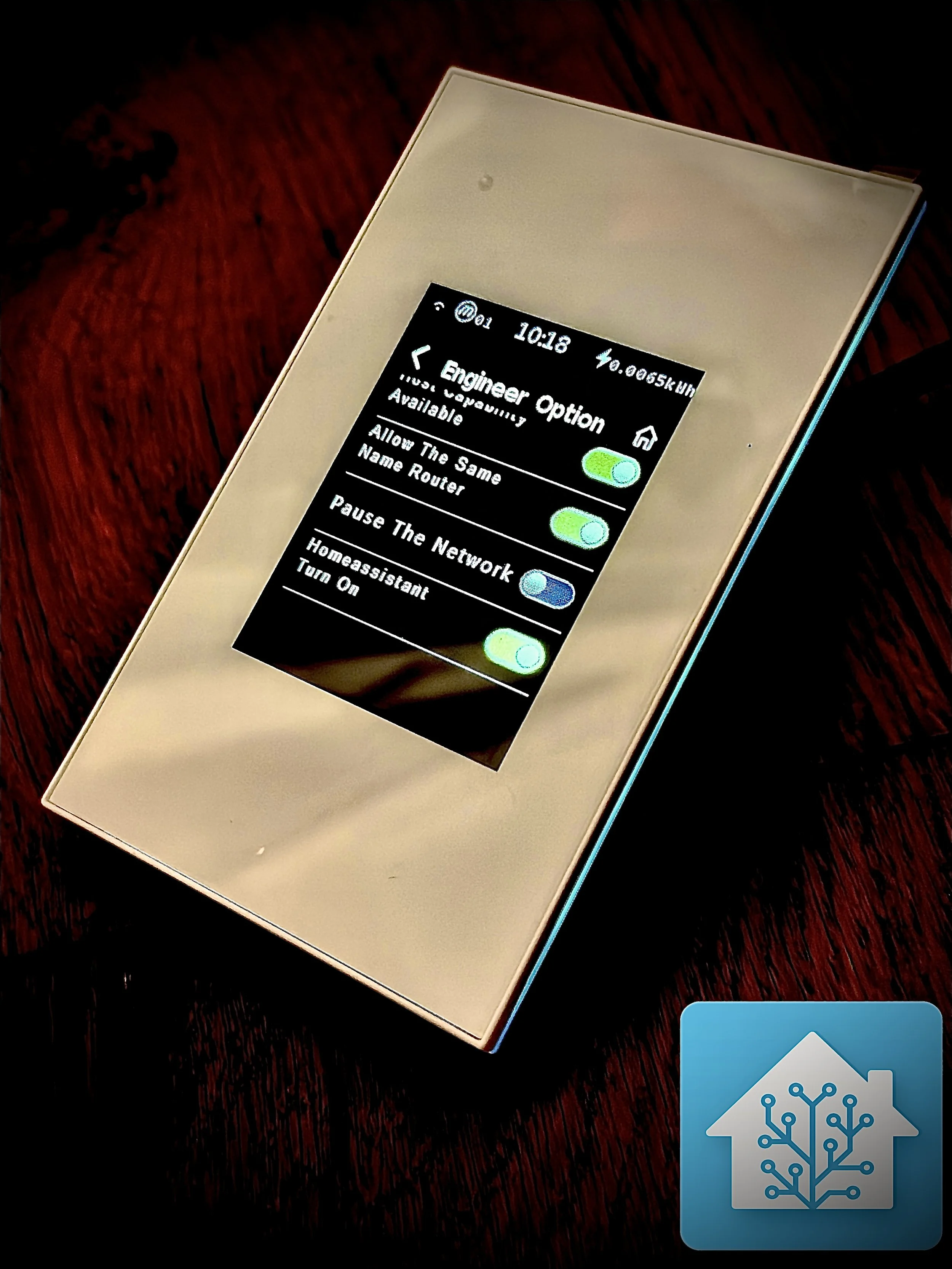

Home Assistant
Connect supported Mirror Range models to Home Assistant via MQTT; Node-RED is also supported. On non-HomeKit models, one switch connects to your router and the others communicate through the local mesh network. Check Wi-Fi coverage at each planned switch location.
Available on selected models:
• 5-in-1 multi-function switch
• Single-gang dimmer.
Specifying for a new build or renovation? Check the SKU list above, then contact Ctec to confirm platform compatibility before ordering.
Mirror Range · L8-HS electrician reference

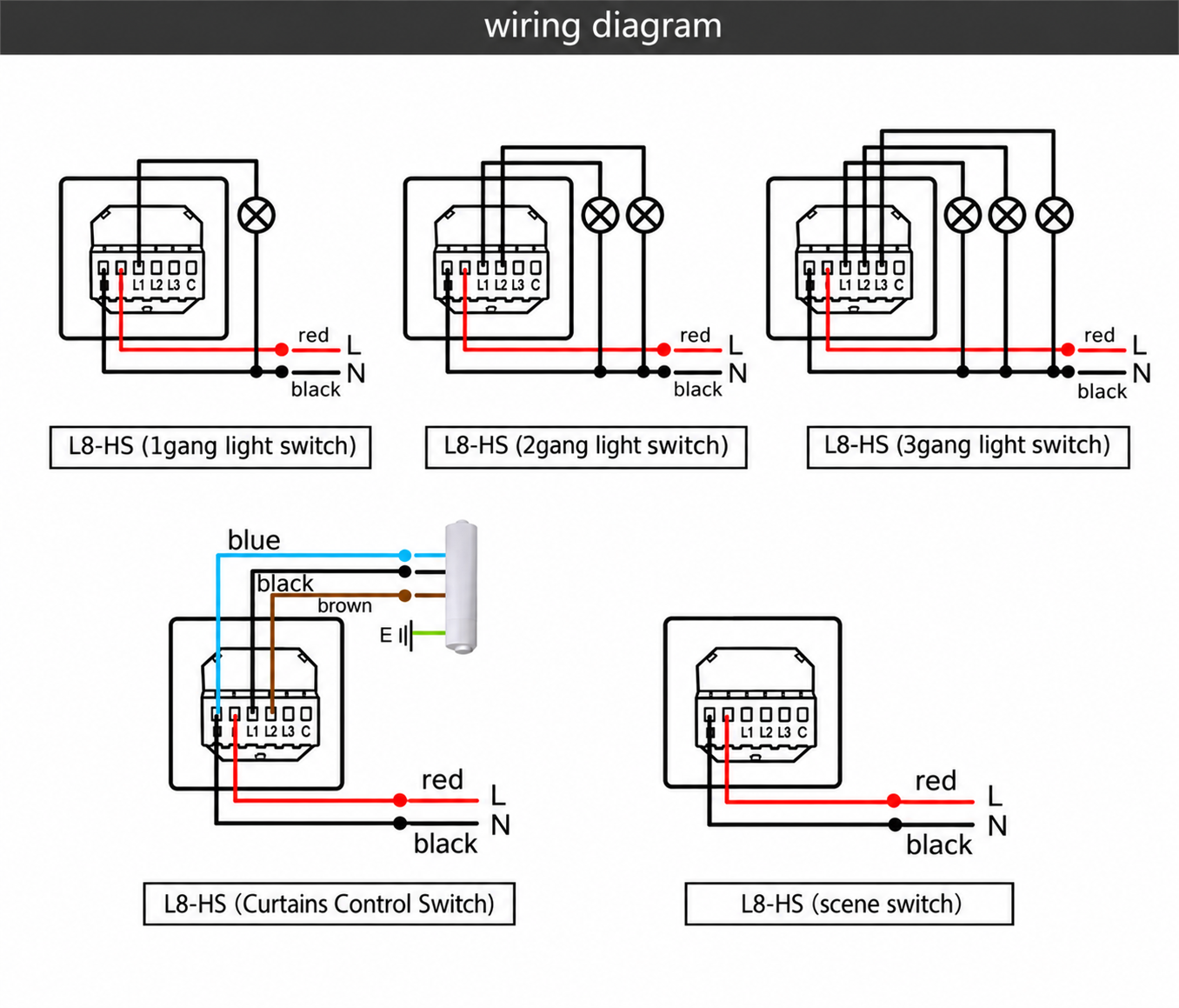

Wiring diagrams
Select the diagram that matches the switch function. This reference covers 1-, 2- and 3-gang lighting, curtain control and scene control.
Wireless multi-way control
On compatible Mirror Range models, one load switch connects to the lighting load; additional compatible switches link through the app as remote controls. There is no traveller wire between switch locations. This describes control pairing, not terminal wiring; follow each model’s wiring diagram for electrical connections.
Features & control
Feature and smart-home compatibility vary by SKU. Check the product list above before ordering.
5-in-1 multi-function switch
Configure for 1-, 2- or 3-gang lighting, curtain/shutter control, or scene control. Scene control is not available on HomeKit models. In curtain/shutter mode, the switch controls curtains or shutters only; it cannot control lights.
Single-gang dimmer
Trailing-edge dimming for compatible LED lamps and drivers. Ask your electrician to confirm compatibility before ordering.
3-speed AC fan & light switch
Controls compatible 3-speed AC fans, with optional light control where supported. Not suitable for DC fans.
Network & smart-home compatibility
Non-HomeKit models use an MQTT-based local mesh Wi-Fi network: one switch connects to the router and the others communicate through the mesh.
HomeKit models do not use mesh networking; each connects to Wi-Fi individually. Check signal coverage at every switch location.
Smart-home compatibility varies by model. Home Assistant and Node-RED via MQTT are supported on the 5-in-1 switch and single-gang dimmer. Refer to the SKU list above for platform support.
LCD display & personalisation
The LCD displays button names and icons, time, Wi-Fi status and power consumption. Customise button names, icons and the screen background in the app or switch settings. Set vertical or horizontal orientation in the settings.
Timers & app tools
Use a weekly schedule, countdown, or automatic-off timer. Adjust standby display brightness and turn the background light off permanently or during selected times.
Other app tools:
- Notifications when another user operates a switch
- Manage switches on the same network
- Siri Shortcuts
- Electricity-cost estimates using the tariff entered in the app.
Voice control
Hey Google, good morning.
Alexa, I am home.
Hey Siri, turn on kitchen light.
Compatible models work with Google Assistant, Amazon Alexa or Siri.
